Product Overview

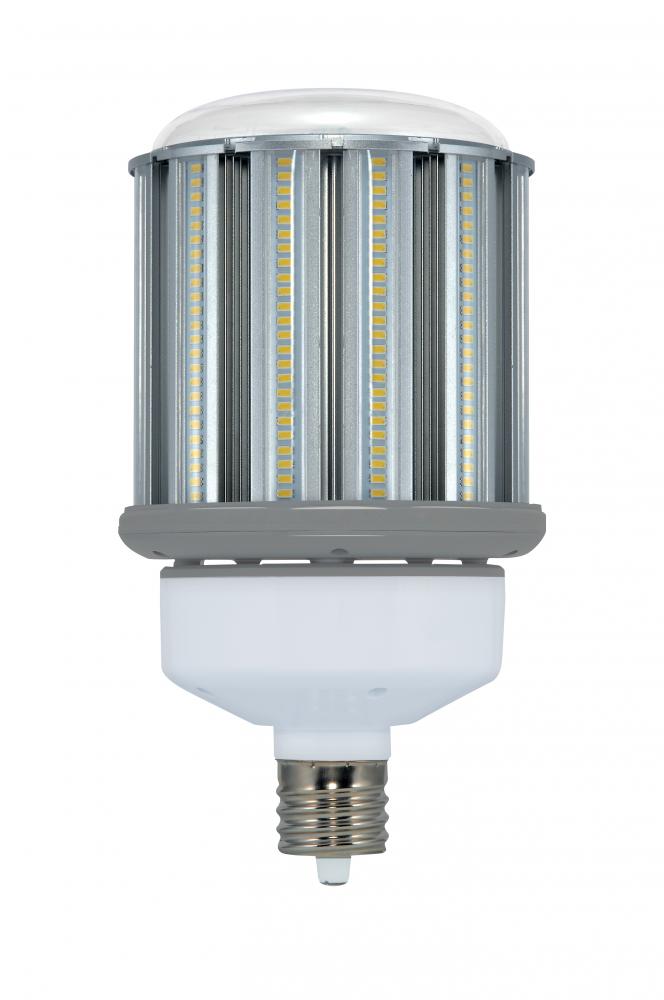

120 Watt LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

4000K

Bulb Shape:

Corncob

Diameter:

5.88

EA Length:

7.56

Harmonized Codes:

8539.50.0091

Length:

10.38

Lumens:

15600L

Shap Carton Width:

7.56

Ship Carton Height:

11.89

Ship Weight:

4.9

Warranty:

5 Year Limited - Hi-Pro

Weight:

3.9

AC/DC:

AC 90-305V

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Base Up or Down

Carton Cubic Feet:

0.3933

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Cool White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

130.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

200W

HID Equivalent:

600W

Housing Color:

White/Grey

Incandescent Equivalent:

750W

Includes:

Safety chain

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Wet

Minimum Compartment Size:

Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.

Operating Frequency:

50-60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.96

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

120W/LED/HID/40K/100-277V/EX39

Surge Protection:

Built-in surge protection - 5KV

Technology:

LED

Thermal Management:

Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

120W
