Product Overview

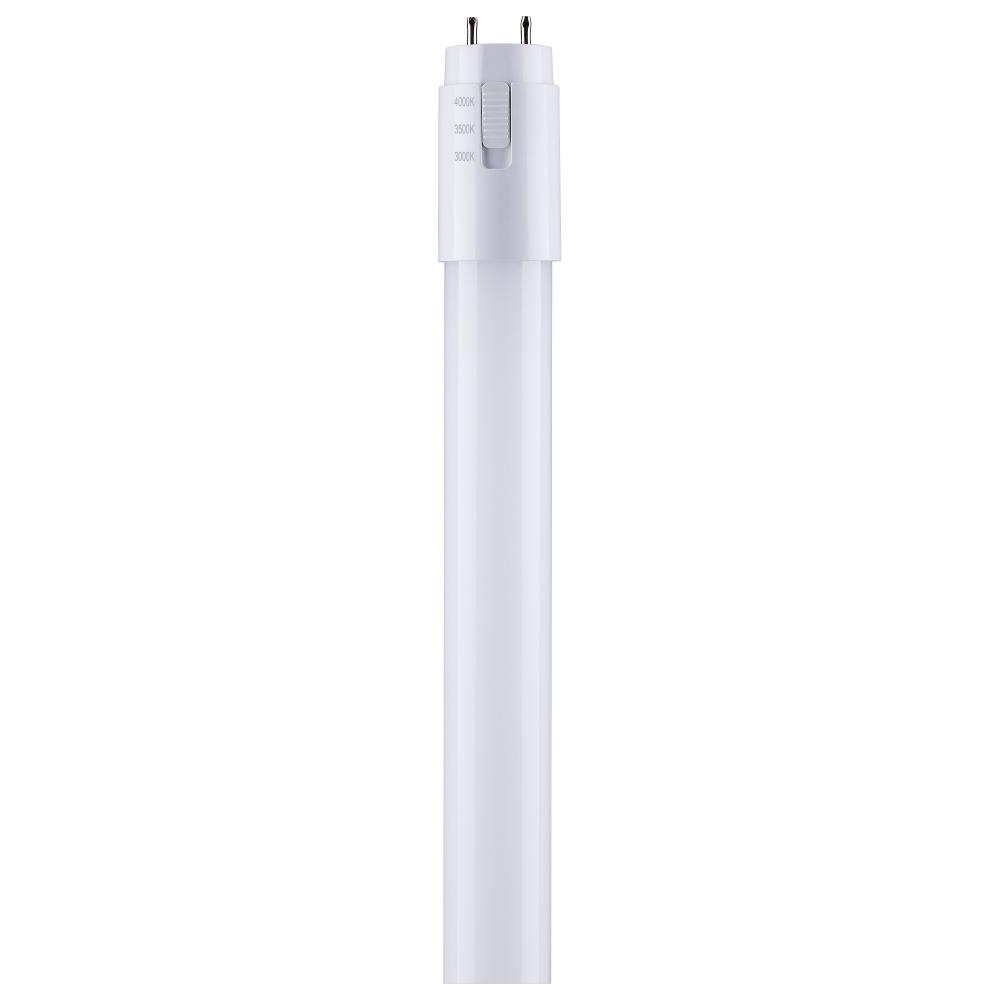

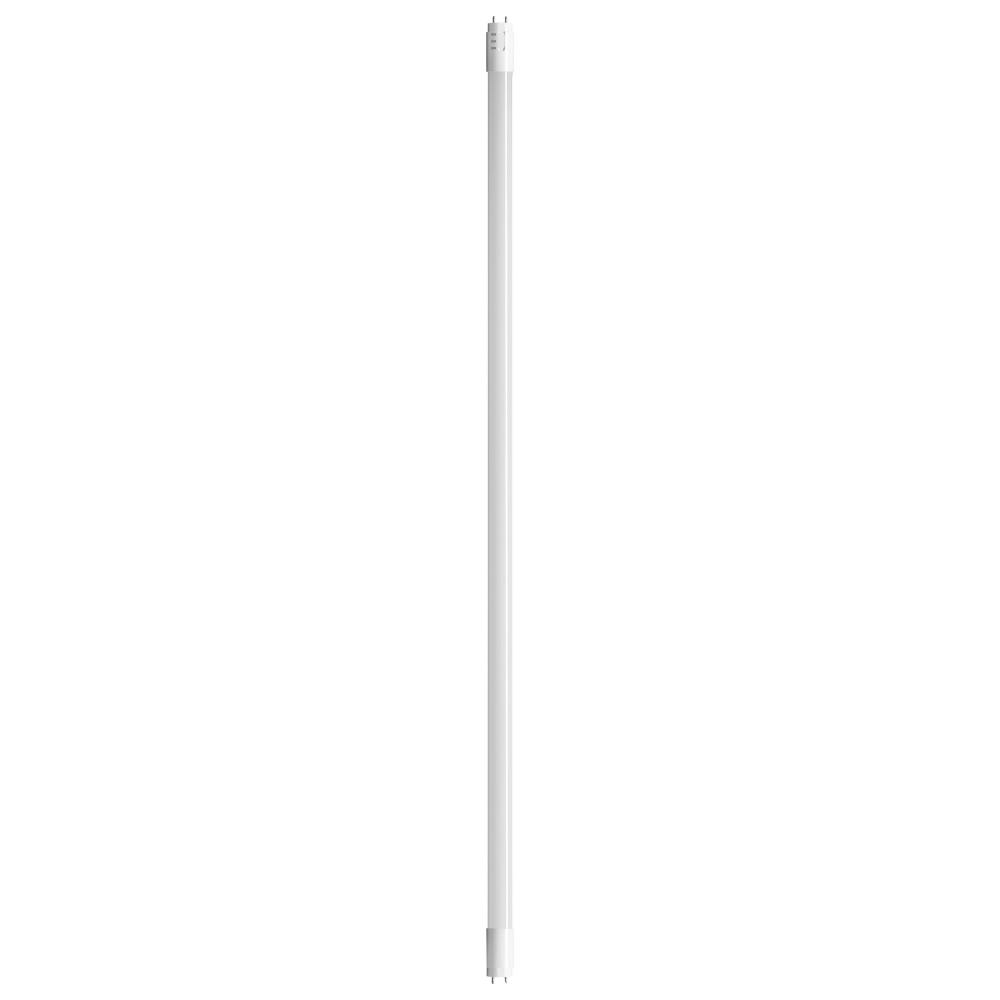

12.5 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type B; Ballast Bypass; 25PK

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K

Bulb Shape:

T8

Diameter:

1

EA Length:

50

Harmonized Codes:

8539.52.0051

Length:

48

Lumens:

1700L/1750L/1800L

Shap Carton Width:

6.5

Ship Carton Height:

6.7

Ship Weight:

8.75

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.55

Additional Info:

Sold in packs of 25

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

220

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

1.2601

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White to Neutral White

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-L7RWZ3

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

136.00/140.00/144.00 LPW

Enclosed Fixture Use:

Yes

Feature 1:

3 CCT Selectable

Feature 2:

Type B, Ballast Bypass Options

Feature 3:

50,000 Hour Functional Life

Feature 4:

5 Year Warranty

Feature 5:

All Glass Tube

Feature 6:

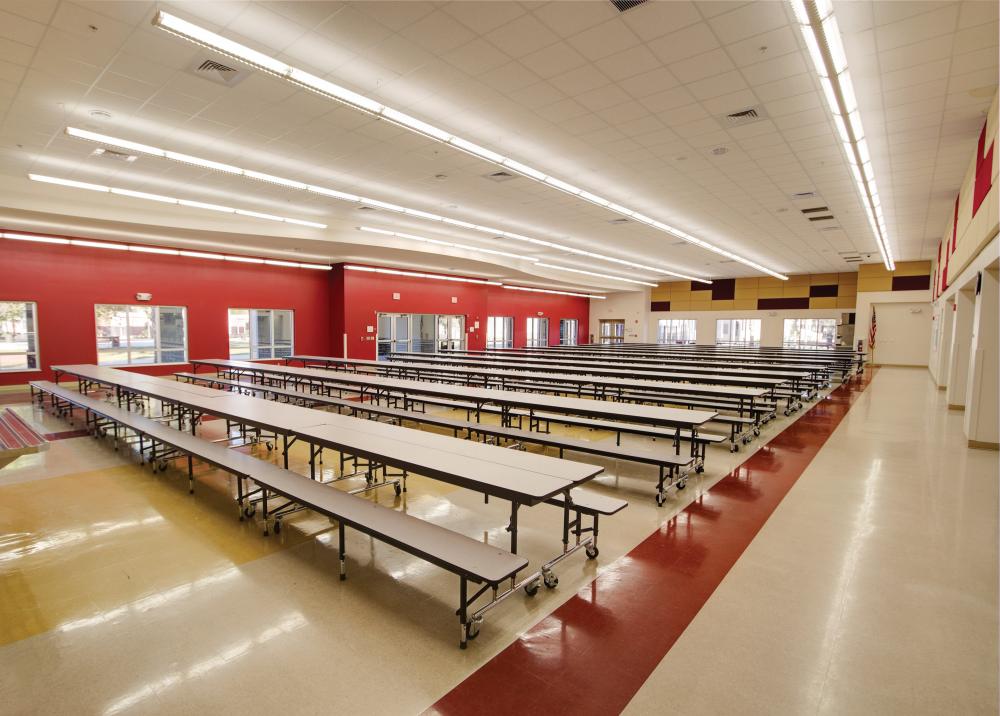

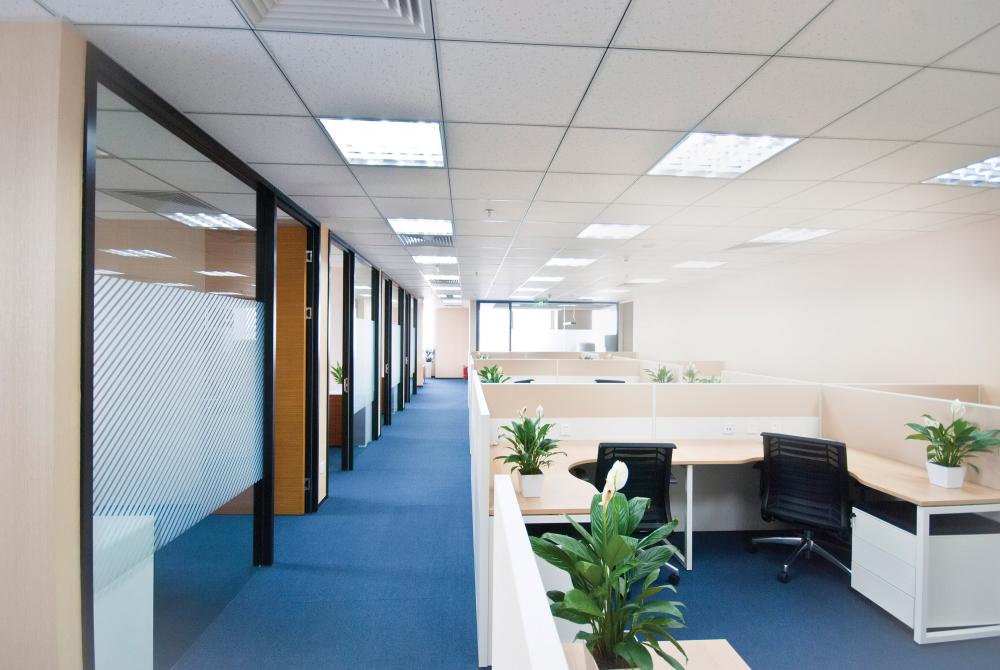

Ideal for use in: Commercial, Hospitality, Office, Retail, Warehouse, and more

Flourescent Equivalent:

32W

Has Emergency Battery:

No

Housing Color:

White

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

SATCO NUVO's, S11969, is one the most versatile Fluorescent to LED replacement lamps in the industry today. With it's Type B Ballast Bypass compatibility and ease of installation, this lamp will cover an extensive range of fixtures in a wide range

Material:

Plastic

Nominal Length:

48

Operating Frequency:

50-60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

25

Romance Copy:

SATCO NUVO's Color Quick CCT selectable LED Linear T8 lamps are some of the most versatile Fluorescent to LED replacement lamps in the industry. Available in both Type A, Ballast Compatible and Type B, Ballast Bypass configurations, they cover a wide r

SDS class:

LED_Lamp

Short Description:

12.5T8/LED/48/830-835-840/BP

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<25%

Wattage Selectable:

No

Watts:

12.5W
